Weak Airflow From AC Vents: Causes, Diagnosis & Repair

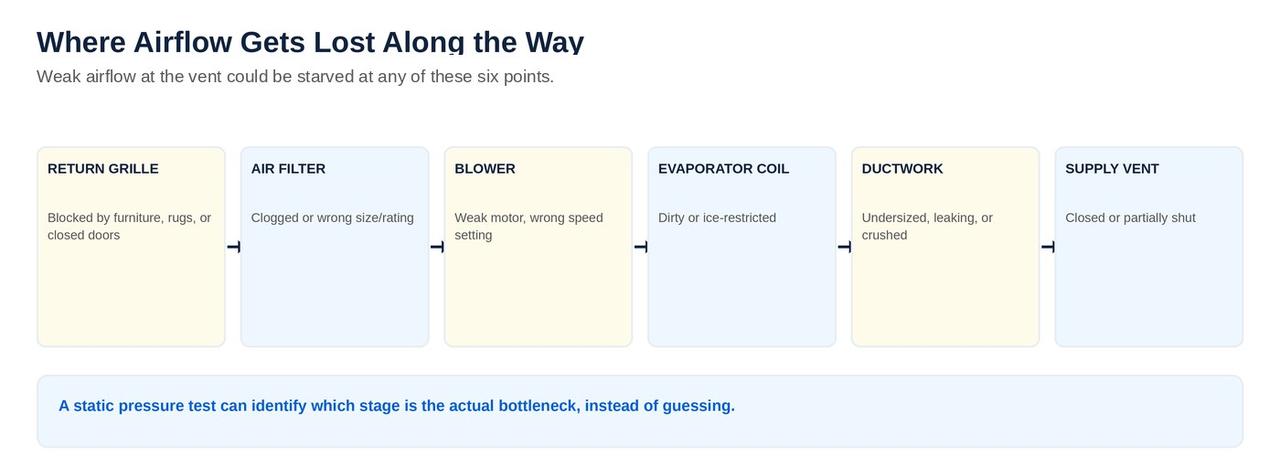

Weak airflow from AC vents usually means the blower cannot move enough air through the return system, filter, evaporator coil, ductwork, zoning dampers, and supply registers. Common causes include dirty filters, clogged coils, frozen coils, blower motor problems, duct leakage, blocked returns, closed dampers, and high static pressure.
Weak airflow can reduce cooling capacity, raise humidity, increase energy use, and contribute to evaporator freezing and compressor stress.
Texas HVAC License TACLB43277C.
What This Guide Covers
Symptoms of Weak AC Airflow
Air Barely Moves From Vents
Supply registers feel weak even when the blower is running.
Some Rooms Stay Warm
Rooms farther from the air handler may receive too little air.
Long Run Times
The system cannot deliver enough conditioned air to satisfy the thermostat.
High Indoor Humidity
Improper airflow can reduce moisture removal and comfort.
Frozen Evaporator Coil
Low airflow may cause the coil temperature to fall below freezing.
Whistling or Noisy Ducts
High static pressure can force air through small gaps and restrictions.
15 Causes of Weak Airflow From AC Vents
1. Dirty Air Filter
A loaded filter restricts return airflow before air reaches the blower.
2. Dirty Evaporator Coil
Dust and debris block air from passing through the indoor coil.
3. Frozen Evaporator Coil
Ice can almost completely block airflow.
4. Blower Motor Failure
The motor may run slowly, stop intermittently, or fail completely.
5. Weak Blower Capacitor
PSC blower motors may lose torque or fail to reach full speed.
6. ECM Motor or Module Problem
An ECM may fail to respond correctly to speed commands.
7. Dirty Blower Wheel
Dust on the wheel reduces its ability to move air.
8. Blocked Return Grille
Furniture, rugs, and dust can restrict return air.
9. Undersized Return System
Too little return area starves the blower.
10. Duct Leakage
Conditioned air escapes before reaching the rooms.
11. Crushed or Disconnected Duct
Flex duct may collapse, kink, tear, or separate.
12. Closed or Blocked Supply Registers
Closed dampers reduce airflow to individual rooms.
13. Zoning Damper Problem
A stuck or failed damper may block part of the duct system.
14. Incorrect Blower Speed
Fan settings may be too low for the equipment and duct system.
15. High Static Pressure
The blower must work against excessive resistance in the air path.
Dirty Filter, Dirty Coil, and Frozen Coil
These three problems are closely connected.
- A dirty filter reduces airflow.
- The evaporator coil receives less warm air.
- Coil temperature may fall below freezing.
- Ice blocks even more airflow.
- Cooling performance drops sharply.
Blower Motor and Blower Wheel Problems
The blower must move the correct amount of air through the duct system.
- Motor not starting
- Motor running at the wrong speed
- Weak PSC capacitor
- ECM control module fault
- Dirty blower wheel
- Loose wheel hub
- Incorrect wiring or speed tap
- Motor overheating and stopping
A Running Blower Can Still Be Weak
The motor may operate while airflow remains low because of incorrect speed, a dirty wheel, high static pressure, or a failing motor.
Return-Air Problems That Reduce Airflow
The blower cannot supply more air than the return system can deliver.
- Blocked return grille
- Dirty return grille
- Undersized return duct
- Collapsed flex return
- Leaky return pulling attic air
- Closed bedroom doors without transfer paths
- Poorly fitted filter rack
Return restrictions often create high negative pressure near the blower and high total external static pressure.
Duct Leakage, Damage, and Design Problems
Weak airflow at one or several vents may come from the duct system rather than the equipment.
- Disconnected supply branch
- Torn or crushed flex duct
- Sharp bends and excessive sag
- Leaking plenums or takeoffs
- Undersized ducts
- Poor balancing
- Closed manual dampers
- Improperly designed additions

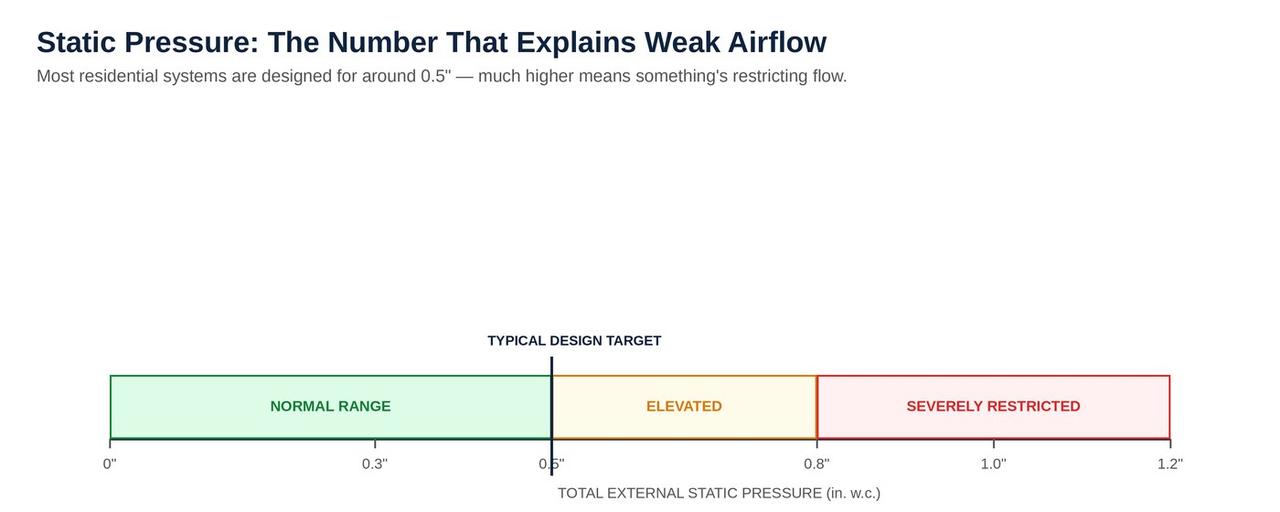

How Static Pressure Affects Airflow
Static pressure is the resistance the blower must overcome to move air through the system.
High static pressure can come from:
- Dirty filters
- Dirty coils
- Undersized returns
- Too many closed registers
- Restricted or undersized ducts
- High-resistance filters
- Improper zoning setup
High static pressure may reduce airflow, increase noise, stress the blower, and contribute to coil freezing.
Weak Airflow Diagnostic Comparisons
| Condition | Common clues |
|---|---|
| Dirty filter | Filter visibly loaded; airflow may improve after replacement |
| Dirty evaporator coil | Weak airflow remains after filter change; coil pressure drop is high |
| Blower motor problem | Motor slow, intermittent, noisy, or not reaching commanded speed |
| Duct leak | Weak airflow in selected rooms; attic or crawlspace air loss may be present |
| Undersized return | Return noise, high negative pressure, doors pull or slam |
| Frozen coil | Airflow becomes progressively weaker; ice or water appears |
Weak Airflow vs. Low Refrigerant
| Clue | Airflow problem | Low refrigerant |
|---|---|---|
| Vent airflow | Usually weak | May be normal before freezing |
| Static pressure | Often abnormal | May be normal |
| Superheat | Varies by airflow condition | Often high |
| Subcooling | May be normal | Often low on applicable systems |
| Leak evidence | Usually absent | May be present |
Weak Airflow in One Room vs. the Whole House
| Pattern | Likely causes |
|---|---|
| One room only | Branch duct damage, closed damper, register blockage, poor balancing |
| Several nearby rooms | Shared trunk or zone damper problem |
| Whole house | Filter, coil, blower, return restriction, or overall high static pressure |
| Upstairs only | Duct leakage, balancing, zoning, heat gain, or undersized upper-floor ducts |
What Homeowners Can Check Safely
- Replace a dirty filter with the correct size
- Open all normal supply registers
- Clear furniture from return grilles
- Check whether airflow is weak everywhere or only in one room
- Look for visible ice or water
- Listen for blower or duct noise
- Verify the thermostat fan setting
How a Technician Diagnoses Weak Airflow
- Inspect filter size, condition, and fit
- Inspect evaporator coil and blower wheel
- Measure total external static pressure
- Measure pressure drop across filter and coil
- Verify blower speed and airflow setup
- Measure motor voltage and amperage
- Test PSC capacitor or ECM commands
- Measure supply and return temperatures
- Inspect return and supply ducts
- Check zoning dampers and controls
- Measure airflow at registers when needed
- Verify refrigerant conditions after airflow is corrected
Airflow Must Be Verified Before Refrigerant Charge
Incorrect airflow can distort suction pressure, superheat, and temperature-split readings.
How Weak Airflow Is Repaired
- Replace the filter
- Clean the evaporator coil
- Thaw and diagnose a frozen coil
- Clean the blower wheel
- Repair or replace the blower motor
- Correct blower speed settings
- Repair return restrictions
- Seal or replace damaged ducts
- Open or repair dampers
- Balance airflow between rooms
- Redesign undersized return or supply ducts
Repair or Replace?
Most airflow problems are repairable. Full-system replacement becomes more relevant when the air handler is badly deteriorated, the evaporator coil leaks, the duct system requires major redesign, or the equipment is old and mismatched.
Weak AC Airflow in Spring or The Woodlands?
AC Repair Expo Heating & Cooling Inc provides airflow, blower, evaporator coil, duct, return-air, zoning, and refrigerant diagnostics throughout Spring, The Woodlands, Tomball, Cypress, Conroe, Humble, Kingwood, and nearby North Houston.
- Static-pressure testing
- Blower motor diagnosis
- Coil and filter inspection
- Duct and return-air checks
- Zoning and damper diagnosis
- Repair-versus-replacement options
Frequently Asked Questions
Why is the airflow from my AC vents weak?
Common causes include a dirty filter, dirty or frozen coil, blower problems, blocked returns, duct leakage, closed dampers, and high static pressure.
Can a dirty filter cause weak airflow?
Yes. A loaded filter restricts return air before it reaches the blower.
Can a dirty evaporator coil reduce airflow?
Yes. Dirt blocks the coil fins and increases pressure drop.
Can low refrigerant cause weak airflow?
Indirectly. Low refrigerant can cause coil freezing, and the ice then blocks airflow.
Why is airflow weak in only one room?
A closed damper, blocked register, damaged branch duct, or poor balancing may be responsible.
Can a blower motor run but still be bad?
Yes. It may run slowly, overheat, stop intermittently, or fail to reach the correct speed.
What is static pressure?
It is the resistance the blower must overcome to move air through the HVAC system.
Can closing vents improve airflow elsewhere?
Sometimes slightly, but closing too many vents can raise static pressure and create new problems.
Can duct leaks cause weak airflow?
Yes. Conditioned air may escape into the attic, walls, or crawlspace before reaching the room.
Should I turn the AC off if airflow is weak?
Turn cooling off if the coil or refrigerant line is frozen or if airflow becomes extremely weak.
How is airflow measured?
Technicians use static-pressure readings, temperature measurements, blower data, and airflow instruments.
When should I call an HVAC technician?
Call when airflow remains weak after replacing the filter, the coil freezes, or several rooms stay uncomfortable.
