Thermostat Blank Screen: Causes, Safe Checks & Repair
A blank thermostat screen usually means the thermostat has lost battery power or 24-volt HVAC control power. Common causes include dead batteries, a tripped breaker, an air-handler switch that is off, an open furnace-door switch, a full condensate drain pan, a blown low-voltage fuse, a failed transformer, loose R or C wiring, or an internal thermostat failure.
The thermostat itself is not always the failed part. A blank display may be the first visible symptom of a drain problem, low-voltage short, transformer failure, control-board issue, or power interruption elsewhere in the HVAC system.
Texas HVAC License TACLB43277C. Serving Spring, The Woodlands, Tomball, Cypress, Conroe, Humble, Kingwood, and nearby North Houston.
What This Guide Covers
What Does a Blank Thermostat Screen Mean?
A blank display generally means one of three things:
The Thermostat Lost Its Own Power
Battery-powered thermostats may go blank when batteries fail or battery contacts corrode.
The HVAC Control Circuit Lost Power
A breaker, switch, door interlock, fuse, transformer, float switch, wiring fault, or control board may interrupt 24-volt power.
The Thermostat Failed Internally
The thermostat may receive correct power but fail to illuminate, boot, or respond because of damaged electronics.
The Display Is Off but Equipment Is Still Operating
Some failures leave relays or equipment operating temporarily even though the screen is blank.
Blank Does Not Automatically Mean “Bad Thermostat”
Power and safety circuits should be tested before the thermostat is replaced.

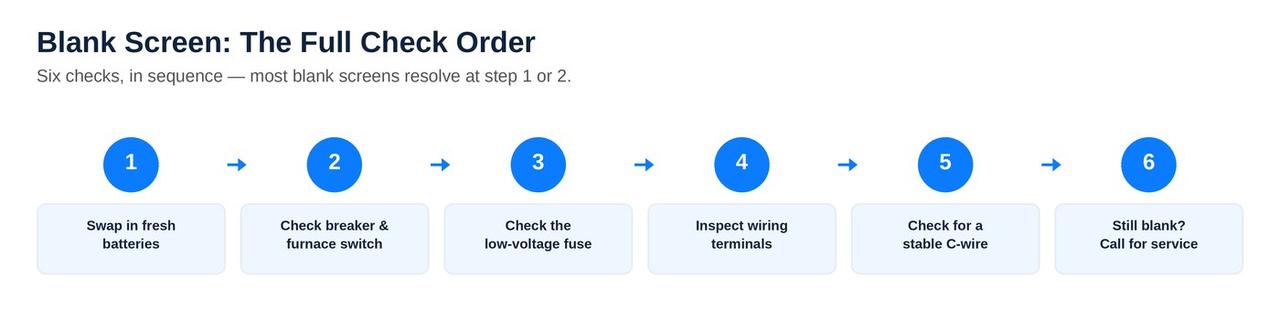

Safe Checks You Can Do First
- Tap the screen or press a button: Some displays sleep when inactive.
- Replace the batteries: Use the exact type recommended by the thermostat manufacturer.
- Check the thermostat base: Make sure the thermostat is fully seated and level on its wall plate.
- Check the HVAC breaker once: Reset only a clearly tripped breaker. Do not keep resetting it.
- Check the indoor service switch: Confirm the furnace or air-handler switch is on.
- Check the furnace door: Make sure the blower door is installed and engaging the safety switch.
- Look for water: A full drain pan may open a float switch and remove cooling or thermostat power.
- Wait after an outage: Some thermostats and controls need time to reboot and may enforce a compressor delay.
15 Reasons a Thermostat Screen Goes Blank
1. Dead Batteries
The thermostat may lose its display, programming, or equipment control when battery voltage falls too low.
2. Corroded Battery Contacts
Old batteries can leak and damage the contacts, preventing new batteries from powering the thermostat.
3. Tripped HVAC Breaker
A tripped furnace, air-handler, or HVAC breaker can remove power from the transformer and thermostat.
4. Indoor Service Switch Is Off
A switch near the furnace or air handler may be turned off accidentally during attic or cleaning work.
5. Furnace Door Switch Is Open
An improperly installed blower door can prevent the indoor equipment and thermostat circuit from receiving power.
6. Open Condensate Float Switch
A clogged drain or full pan may interrupt thermostat power or the cooling circuit to reduce water-damage risk.
7. Blown Low-Voltage Fuse
A shorted thermostat wire, outdoor control wire, contactor coil, accessory, or installation error may open the fuse.
8. Failed 24-Volt Transformer
The transformer may fail because of age, overheating, excessive load, a short circuit, or power-surge damage.
9. Loose R Wire
A loose R connection can remove the thermostat's incoming 24-volt power.
10. Loose or Missing C-Wire
Many smart thermostats need a stable common path to remain powered continuously.
11. Thermostat Not Seated on Base
Wall-plate pins may not contact correctly after painting, battery replacement, or thermostat removal.
12. Failed Control Board
The indoor board may lose power, fail internally, or stop supplying the thermostat circuit.
13. Shorted Low-Voltage Wiring
Pinched, rubbed, wet, or pest-damaged wire can pull the circuit down or repeatedly blow fuses.
14. Power Surge or Outage Damage
A surge may damage the thermostat, transformer, control board, or communicating equipment network.
15. Internal Thermostat Failure
The thermostat may receive correct voltage but remain blank because its display or electronics failed.

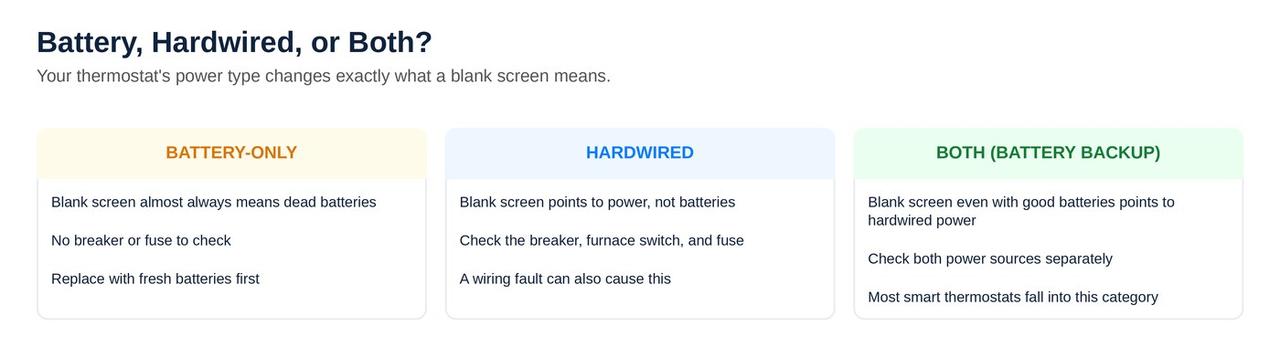

Dead Batteries and Battery Contact Problems
Some thermostats are powered entirely by batteries. Others use HVAC control power but keep batteries for backup.
Battery-related clues include:
- Low-battery warning appeared before the screen went blank
- Display returns after installing fresh batteries
- Settings or clock reset after battery replacement
- Corrosion, residue, or bent contacts inside the battery compartment
- Thermostat works when pressed against the wall plate but loses power when released
Can a Clogged Drain Make the Thermostat Blank?
Yes. Many Texas HVAC systems use a float switch in the drain line or emergency drain pan.
When water rises, the switch may be wired to:
- Interrupt thermostat R power
- Interrupt only the Y cooling signal
- Shut down the indoor unit
- Stop the outdoor unit while the thermostat display remains on
This means a drain problem can produce different symptoms depending on the wiring design.
Blown Fuse vs. Failed Transformer
| Clue | Blown low-voltage fuse | Failed transformer |
|---|---|---|
| Thermostat display | Often blank | Often blank |
| Fuse inspection | Fuse element is open | Fuse may remain intact |
| Transformer input | Line voltage may be present | Line voltage may be present |
| Transformer output | May be normal before the fuse | Low or absent |
| Typical root cause | Shorted wire, contactor coil, accessory, or installation error | Age, overheating, surge, short circuit, or overload |
| Correct repair | Find and repair the short before replacing the fuse | Replace transformer after correcting the cause |
A Fuse Is a Symptom
Installing another fuse without locating the short can cause the replacement fuse to fail immediately.
R-Wire and C-Wire Power Problems
The R wire supplies control voltage to the thermostat. The C wire provides the common return path used by many electronic thermostats.
| Wire or terminal | Possible blank-screen symptom |
|---|---|
| Loose R | No incoming thermostat power |
| Loose C | Reboots, flickering, intermittent blank display, or charging problems |
| Broken thermostat cable | Power present at control board but absent at thermostat |
| Incorrect Rc/Rh jumper or configuration | Partial operation or no equipment calls on some conventional systems |
| Accessory sharing transformer power | Voltage may sag or become unstable under load |
Thermostat Blank After a Power Outage
After an outage, the thermostat may remain blank because:
- The HVAC breaker tripped when power returned
- The indoor service switch is off
- A surge damaged the thermostat, transformer, or control board
- The smart thermostat battery is deeply discharged
- The thermostat or communicating system is rebooting
- The control board fuse opened
Some thermostats need several minutes before the screen and HVAC calls return. The AC may also enforce a compressor-protection delay.
Smart Thermostat Black Screen
Insufficient C-Wire Power
The thermostat may reboot, go dark, or fail to charge its internal battery.
Deeply Discharged Internal Battery
Some smart thermostats need time to recharge before the screen returns.
Incorrect Power Connector Installation
A power extender or adapter may be wired incorrectly or become disconnected.
Communicating-System Fault
Loss of communication between indoor equipment, outdoor equipment, and controller may blank the display.
Software or Boot Failure
The thermostat may freeze during startup, an update, or recovery after power loss.
Hardware Failure
The display, charging circuit, base, or internal electronics may fail even with correct HVAC power.
Thermostat Blank After Installation or Replacement
If the screen went blank immediately after thermostat work, common causes include:
- HVAC power was not restored
- Thermostat is not fully seated on the base
- R or C wire is loose
- Low-voltage fuse blew during wiring
- Thermostat is incompatible with the HVAC system
- Power connector or C-wire adapter is installed incorrectly
- Communicating equipment requires a proprietary controller
Why Is the HVAC System Still Running With a Blank Thermostat?
A blank display does not always stop the equipment immediately.
Possible reasons include:
- A thermostat relay failed closed
- The control board is maintaining a timed blower cycle
- The fan is set to run continuously
- A communicating controller lost its display but retained an equipment command
- A stuck contactor or relay is keeping a component energized
- The thermostat display failed while control electronics still operate
Blank Thermostat vs. AC Power Problem
| Clue | Thermostat-specific problem | Broader HVAC power problem |
|---|---|---|
| Indoor equipment power | May be present | May be absent |
| 24 volts at thermostat base | Present | Absent or unstable |
| Control-board lights | May appear normal | May be off or show a fault |
| Other low-voltage accessories | May operate normally | May also be dead |
| Likely repair | Thermostat, base, batteries, or compatibility | Breaker, switch, fuse, transformer, float switch, wiring, or board |
How a Technician Diagnoses a Blank Thermostat
- Confirm thermostat model, power method, and recent service history.
- Inspect batteries, contacts, wall plate, pins, and visible wiring.
- Verify the HVAC breaker, service switch, and furnace-door switch.
- Inspect the condensate drain, float switches, and emergency pan.
- Measure line voltage to the indoor equipment.
- Measure transformer primary and secondary voltage.
- Check the control-board fuse and trace any short.
- Measure R-to-C voltage at the board and thermostat.
- Inspect low-voltage wiring for damage, moisture, or loose connections.
- Disconnect suspected outdoor or accessory circuits to isolate the fault when appropriate.
- Verify thermostat compatibility and smart-thermostat power requirements.
- Test complete heating, cooling, fan, and safety operation after repair.
Measure at Both Ends
Voltage present at the control board but missing at the thermostat points toward a cable, splice, connection, or safety-switch problem between them.
Common Repairs for a Blank Thermostat
- Replace batteries and clean damaged contacts
- Reset a tripped breaker after confirming it is safe
- Restore the indoor service switch or blower-door switch
- Clear the condensate drain and correct the water source
- Repair low-voltage wiring or terminal connections
- Replace a blown fuse after finding the short
- Replace a failed transformer after correcting the cause
- Repair or replace the control board
- Add or repair a C-wire or approved power connector
- Replace an incompatible or internally failed thermostat
Repair or Replace the Thermostat?
Replace the thermostat when correct power reaches it but the display remains blank, the electronics fail intermittently, the wall plate is damaged, or the control is incompatible with the HVAC equipment.
Do not replace the thermostat as the first step when the actual cause is:
- A clogged drain or float switch
- A tripped breaker or open service switch
- A blown fuse
- A failed transformer
- Damaged low-voltage wiring
- A failed control board
- A shorted contactor coil or outdoor wire
Blank Thermostat in Spring or The Woodlands?
AC Repair Expo Heating & Cooling Inc provides thermostat power, battery, C-wire, float-switch, drain, fuse, transformer, control-board, contactor, and complete HVAC diagnostics throughout Spring, The Woodlands, Tomball, Cypress, Conroe, Humble, Kingwood, and nearby North Houston.
- Thermostat power testing
- Battery and C-wire diagnosis
- Float-switch and drain checks
- Fuse and transformer testing
- Low-voltage short diagnosis
- Smart thermostat setup and replacement
Frequently Asked Questions
Why did my thermostat screen go blank?
Common causes include dead batteries, a tripped breaker, open service or door switch, condensate float switch, blown fuse, failed transformer, loose wiring, C-wire problems, or thermostat failure.
Can dead batteries make the thermostat blank?
Yes. Battery-powered and battery-assisted thermostats may lose the display when batteries fail.
Can a clogged drain make the thermostat blank?
Yes. A condensate float switch may interrupt thermostat power or the cooling circuit when water backs up.
Can a blown HVAC fuse cause a blank thermostat?
Yes. A blown low-voltage fuse can remove 24-volt control power from the thermostat.
Why is my thermostat blank after a power outage?
The breaker may have tripped, the thermostat may be rebooting, its battery may be discharged, or a surge may have damaged the transformer, board, or thermostat.
What does the C-wire do?
The C-wire provides the common return path used by many electronic thermostats for continuous power.
Can the HVAC still run with a blank thermostat?
Yes. A relay may be stuck, the blower may be completing a timed cycle, or the display may fail while control electronics still operate.
Should I reset the HVAC breaker?
You may reset a clearly tripped breaker once. Do not keep resetting it if it trips again.
Why did the new thermostat go blank?
Possible causes include lost power, a loose R or C wire, a blown fuse, incorrect power-adapter wiring, poor seating on the base, or incompatibility.
Does a blank thermostat mean it needs replacement?
Not necessarily. Power, batteries, float switches, fuses, transformers, wiring, and control-board problems should be checked first.
Can a bad transformer cause a blank thermostat?
Yes. If the transformer has no usable low-voltage output, the thermostat and HVAC control circuit may lose power.
When should I call an HVAC technician?
Call when fresh batteries do not restore the screen, the fuse blows again, the breaker trips, water is present, or the thermostat has no measured 24-volt power.
