AC Compressor Short Cycling: Causes, Damage & Repair
Compressor short cycling means the outdoor compressor starts and stops too frequently instead of completing a normal cooling cycle. It may run for only seconds or a few minutes before shutting off and restarting.
Common causes include thermostat problems, pressure-switch trips, weak capacitors, low or excessive refrigerant, dirty coils, failed fans, overheating, oversized equipment, control faults, and locked-rotor conditions.
Texas HVAC License TACLB43277C.
What This Guide Covers
What Is Compressor Short Cycling?

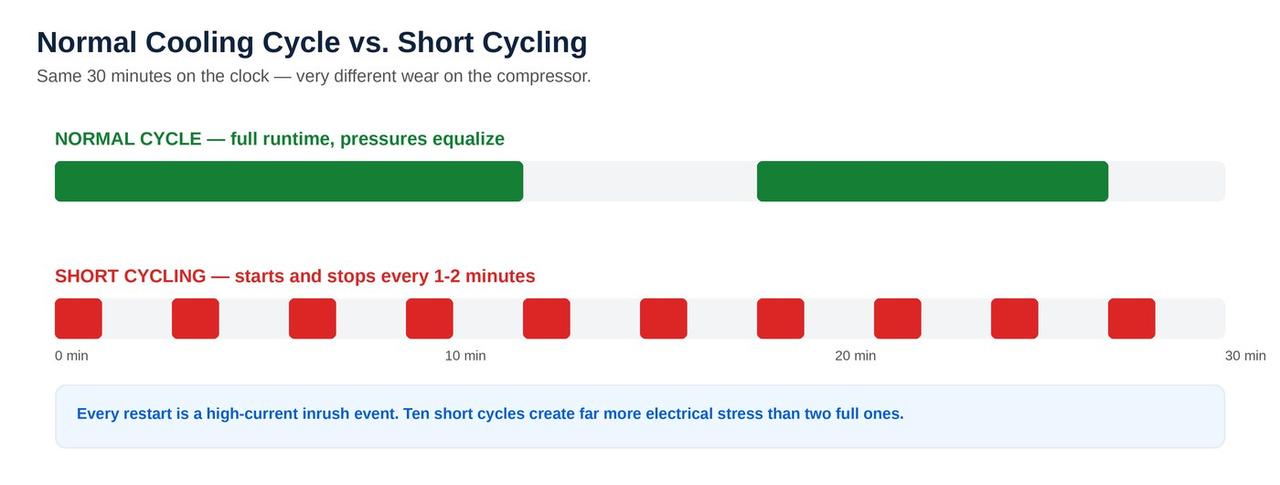

A normal cooling cycle should run long enough to remove heat and humidity efficiently. Short cycling interrupts that process.
Short cycling may involve:
- The thermostat ending the call too quickly
- A safety control shutting the compressor off
- The compressor opening on thermal overload
- A contactor or control signal dropping out
- The compressor failing to start and retrying
Not Every Short Cycle Has the Same Cause
The key is determining whether the thermostat, safety circuit, electrical circuit, refrigerant circuit, or compressor itself is ending the cycle.
Common Symptoms of Compressor Short Cycling
Starts and Stops Every Few Minutes
The outdoor unit cannot complete a normal cooling cycle.
Hum-Click-Retry Pattern
The compressor may fail to start, open protection, cool, and retry.
Weak Cooling
Short cycles reduce total cooling capacity.
High Indoor Humidity
The evaporator does not run long enough to remove moisture effectively.
High Electric Bills
Frequent starts consume more energy and reduce efficiency.
Outdoor Unit Clicks Off While Indoor Fan Runs
A compressor safety or overload may be opening.

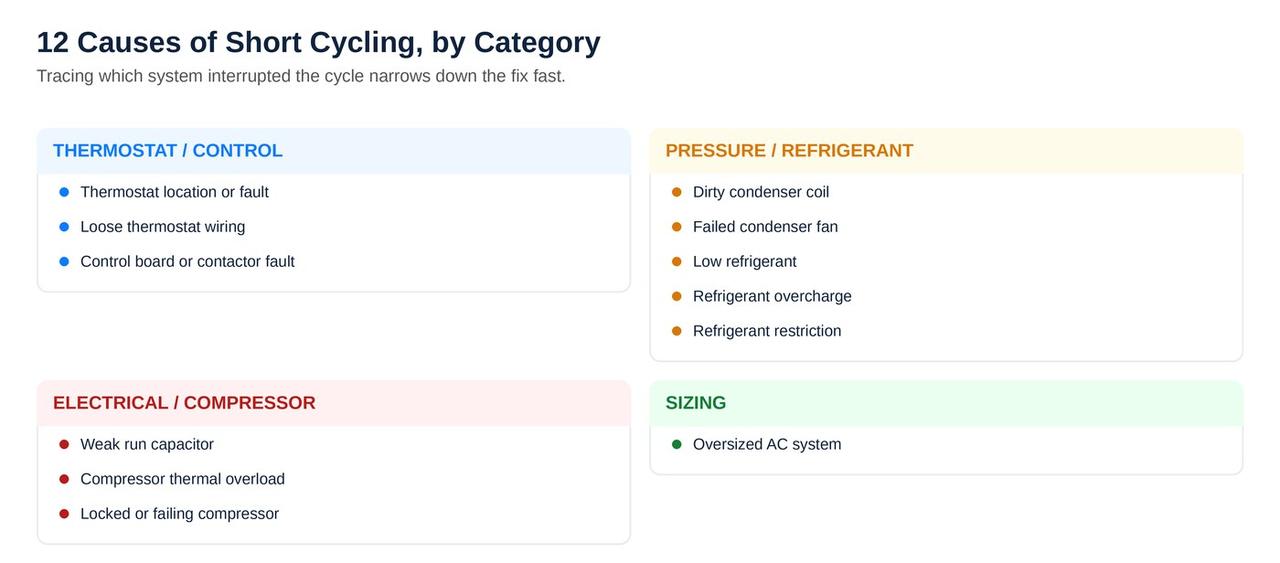

12 Causes of AC Compressor Short Cycling
1. Thermostat Location or Fault
A thermostat near a supply vent, warm appliance, or sunlight may end calls incorrectly.
2. Loose Thermostat Wiring
An unstable Y signal can repeatedly energize and de-energize the contactor.
3. Weak Run Capacitor
The compressor may struggle to start, overheat, and retry.
4. Dirty Condenser Coil
High pressure may trip a safety control or overload.
5. Failed Condenser Fan
Without airflow, head pressure rises rapidly.
6. Low Refrigerant
Low pressure or evaporator freezing may trigger shutdowns.
7. Refrigerant Overcharge
High head pressure may cause high-pressure trips.
8. Refrigerant Restriction
Abnormal pressure conditions may open a safety control.
9. Compressor Thermal Overload
Excessive temperature or current causes the compressor to cycle off.
10. Oversized AC System
The thermostat may satisfy too quickly, causing frequent normal starts.
11. Control Board or Contactor Fault
Chattering, dropping voltage, or unstable controls can interrupt operation.
12. Locked or Failing Compressor
The compressor may pull high current, open protection, and retry.
Thermostat and Control Problems
Short cycling can begin before the compressor circuit itself.
- Thermostat mounted near a supply register
- Loose Y or common wiring
- Low control voltage
- Condensate float switch opening intermittently
- Control board relay dropping out
- Contactor chatter
- Incorrect cycle-rate settings
High- and Low-Pressure Switch Short Cycling
| Safety control | Common reasons it opens |
|---|---|
| High-pressure switch | Dirty condenser, failed fan, overcharge, non-condensables, airflow recirculation |
| Low-pressure switch | Low refrigerant, restriction, evaporator freezing, low load |
Compressor Thermal Overload Cycling
When compressor temperature or current becomes excessive, the internal overload may open. After cooling, it resets and the compressor starts again.
- Compressor shell becomes extremely hot
- Outdoor fan may continue running
- Compressor restarts after cooling
- Hum-click-retry cycle may occur
- Windings may appear open while hot
Short Cycling vs. Locked Rotor
| Clue | Short cycling | Locked rotor |
|---|---|---|
| Compressor operation | May run briefly before stopping | Usually fails to begin rotating |
| Current | May be normal or high depending on cause | Often remains near LRA |
| Sound | Normal start followed by stop, or repeated click | Deep hum followed by overload trip |
| Control signal | May disappear or remain present | Usually remains present during failed start |
Short Cycling vs. Oversized Equipment
| Clue | Safety or fault cycling | Oversized system |
|---|---|---|
| Cycle end | Often abrupt or abnormal | Thermostat satisfies quickly |
| Cooling | May be weak or intermittent | Temperature may drop quickly |
| Humidity | Often high | Often high because cycles are too short |
| Pressure or electrical faults | May be present | May be normal |
How Short Cycling Damages the Compressor
- Repeated high inrush current
- Excessive motor heating
- Pressure may not equalize between starts
- Reduced oil return
- Contactor and capacitor wear
- Higher chance of thermal overload trips
- Shorter compressor life
Can a Dirty Filter Cause Compressor Short Cycling?
Yes, indirectly. Restricted airflow can freeze the evaporator, lower suction pressure, reduce cooling, and trigger a low-pressure control on equipped systems.
A dirty filter can also cause the system to run abnormally and increase compressor stress.
How a Technician Diagnoses Compressor Short Cycling
- Time the run and off cycles
- Monitor the thermostat Y signal
- Check low-voltage wiring and controls
- Inspect float switches and safety circuits
- Test contactor coil voltage and voltage drop
- Test the run capacitor
- Measure startup and running amperage
- Inspect condenser coil and fan operation
- Measure suction and head pressures
- Calculate superheat and subcooling
- Check compressor shell temperature
- Identify which safety or control opens
- Evaluate equipment sizing and airflow
Watch the Exact Moment It Stops
The most useful clue is whether the thermostat call, contactor voltage, pressure switch, or compressor overload opens first.
How Compressor Short Cycling Is Repaired
- Correct thermostat location or settings
- Repair loose control wiring
- Replace a weak capacitor
- Repair a chattering contactor
- Clean the condenser coil
- Repair or replace the condenser fan
- Repair refrigerant leaks and restore proper charge
- Recover excess refrigerant
- Repair refrigerant restrictions
- Correct airflow and frozen-coil causes
- Replace a failed pressure switch only after confirming the circuit condition
- Replace a failing compressor when internal failure is proven
Repair or Replace?
Short cycling is often repairable when caused by controls, capacitors, airflow, fan motors, or refrigerant problems.
Replacement may make more sense when the compressor is internally damaged, the system is oversized and old, the equipment is out of warranty, or several major components are failing.
AC Compressor Short Cycling in Spring or The Woodlands?
AC Repair Expo Heating & Cooling Inc provides thermostat, control, refrigerant, airflow, and compressor diagnostics throughout Spring, The Woodlands, Tomball, Cypress, Conroe, Humble, Kingwood, and nearby North Houston.
- Thermostat and 24-volt testing
- Capacitor and contactor diagnosis
- Pressure-switch testing
- Refrigerant and airflow checks
- Compressor overload testing
- Repair-versus-replacement options
Frequently Asked Questions
What is AC compressor short cycling?
It means the compressor starts and stops too frequently instead of completing a normal cooling cycle.
How often is too often?
Cycles lasting only seconds or a few minutes, especially when repeated continuously, should be investigated.
Can a bad thermostat cause short cycling?
Yes. Poor location, loose wiring, or incorrect settings can interrupt the cooling call.
Can a bad capacitor cause short cycling?
Yes. A weak capacitor can cause failed starts, overheating, and repeated overload resets.
Can low refrigerant cause short cycling?
Yes. Low pressure, freezing, or a low-pressure switch can interrupt operation.
Can overcharge cause short cycling?
Yes. High head pressure can trip a high-pressure switch or overload.
Can a dirty condenser cause short cycling?
Yes. Poor heat rejection can raise pressure and compressor temperature quickly.
Can an oversized AC short cycle?
Yes. It may satisfy the thermostat too quickly and fail to remove humidity properly.
Does short cycling damage the compressor?
Yes. Repeated starts increase current, heat, wear, and the chance of compressor failure.
Why does the outdoor fan run while the compressor stops?
The compressor may be opening on thermal overload while the fan circuit remains energized.
Should I turn the AC off?
Yes, if the compressor repeatedly hums, clicks, trips protection, or cycles every few minutes.
When should I call an HVAC technician?
Call when the cycling repeats, cooling is weak, humidity rises, or the outdoor unit clicks on and off abnormally.
